超細銅絲導體

超柔性環保PVC絕緣

進口超柔性TPE護套

耐折銅絲編織屏蔽

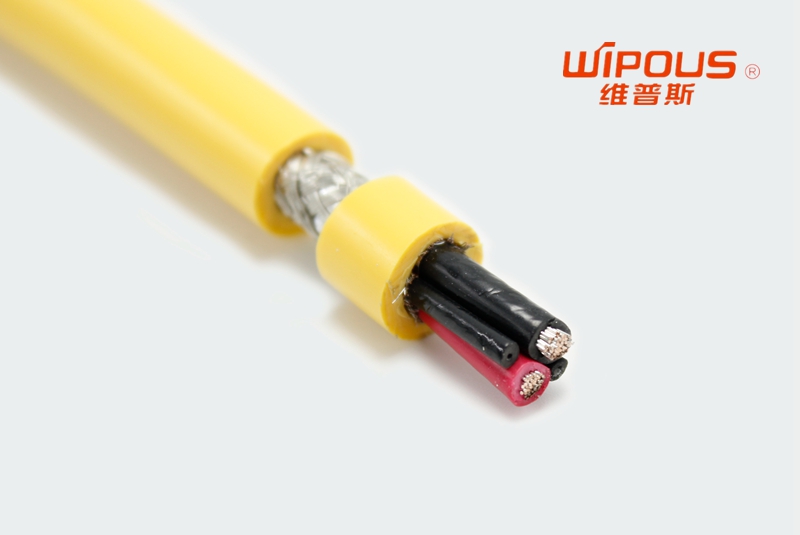

ROBOT-HMCS 高柔性耐扭轉機器人屏蔽電纜

產品詳情介紹

電纜數據

產品應用：

喬浦ROBOT-HMCS高柔性屏蔽機器人電纜專用于機器人系統及移動設備，生產流水線，機器人手臂等柔性場合。在工業環境中做連接控制，干燥或者潮濕的室內環境可以使電纜壽命更久。該線纜采用特制耐油PVC為護套材質，具有很好的耐油耐彎曲性能。鍍錫銅規則纏繞屏蔽層，使線纜具有較強的抗外界電磁干擾能力，保證電纜系統的穩定性。

產品結構：

導體：多股細絞成束裸銅絲，符合IEC 60228/VDE 0295，6類導體/超6類導體

絕緣：特制PVC混合材料

芯線：芯線絞合成纜，芯線顏色符合VDE 0293

JZ 黑色芯線 白色數字編碼帶黃綠導線

JB 彩芯線 帶黃綠導線

OZ 黑色芯線 白色數字編碼不帶黃綠導線

OB 彩芯線 不帶黃綠導線

屏蔽：精細鍍錫銅絲編織或纏繞式屏蔽

外護套：特制彈性PVC混合體

外護套顏色：黑色/灰色/橙色（耐油）

技術參數：

工作電壓：300/500V（或0.6/1KV）

測試電壓：2000V（或3500V）

絕緣電纜：≥20MΩ/Km（20℃）

最小彎曲半徑：移動安裝：大約12×D（線纜外徑）

固定安裝：大約4×D（線纜外徑）

工作溫度：移動安裝 -5℃到+70℃

固定安裝 -30℃到+70℃

阻燃特性：符合VDE0472-804部分B類測試標準和IEC 60332-1

產品特性和符合認證：

1、耐油性，持久耐用

2、耐扭轉，扭轉角度可達±450°

3、屏蔽密度高，抗電磁干擾優異

型號	芯線根數+導體截面積	電纜近似外徑 (mm Max.)	電纜近似重量 (kg / km)
型號	芯線根數+導體截面積	電纜近似外徑 (mm Max.)	電纜近似重量 (kg / km)
ROBOT-HMCS-0.5-2C	2*0.5	8.1	98.9
ROBOT-HMCS-0.5-3C	3*0.5	8.5	110.9
ROBOT-HMCS-0.5-4C	4*0.5	9.2	128.6
ROBOT-HMCS-0.5-5C	5*0.5	9.9	148.1
ROBOT-HMCS-0.5-6C	6*0.5	10.7	168.6
ROBOT-HMCS-0.5-7C	7*0.5	10.7	177.7
ROBOT-HMCS-0.5-8C	8*0.5	11.5	198.6
ROBOT-HMCS-0.5-9C	9*0.5	12.5	225.6
ROBOT-HMCS-0.5-10C	10*0.5	13.3	251.2
ROBOT-HMCS-0.5-12C	12*0.5	13.6	274.2
ROBOT-HMCS-0.5-14C	14*0.5	14.3	303.6
ROBOT-HMCS-0.5-16C	16*0.5	15.0	334.8
ROBOT-HMCS-0.5-18C	18*0.5	15.8	367.3
ROBOT-HMCS-0.5-20C	20*0.5	16.2	391.4
ROBOT-HMCS-0.5-21C	21*0.5	16.6	409.5
ROBOT-HMCS-0.5-24C	24*0.5	18.4	476.7
ROBOT-HMCS-0.5-25C	25*0.5	18.8	495.9
ROBOT-HMCS-0.5-27C	27*0.5	18.8	510.7
ROBOT-HMCS-0.5-30C	30*0.5	19.4	551.7
ROBOT-HMCS-0.5-32C	32*0.5	120.4	614.3
ROBOT-HMCS-0.5-36C	36*0.5	20.9	639.1
ROBOT-HMCS-0.75-2C	2*0.75	8.6	113.4
ROBOT-HMCS-0.75-3C	3*0.75	9.1	128.5
ROBOT-HMCS-0.75-4C	4*0.75	9.6	150.3
ROBOT-HMCS-0.75-5C	5*0.75	10.6	174.1
ROBOT-HMCS-0.75-6C	6*0.75	11.4	199.2
ROBOT-HMCS-0.75-7C	7*0.75	11.4	211.2
ROBOT-HMCS-0.75-8C	8*0.75	12.3	236.8
ROBOT-HMCS-0.75-9C	9*0.75	13.4	269.4
ROBOT-HMCS-0.75-10C	10*0.75	14.3	300.5
ROBOT-HMCS-0.75-12C	12*0.75	14.7	330.0
ROBOT-HMCS-0.75-14C	14*0.75	15.4	366.9
ROBOT-HMCS-0.75-16C	16*0.75	16.2	406.0
ROBOT-HMCS-0.75-18C	18*0.75	17.1	446.5
ROBOT-HMCS-0.75-20C	20*0.75	17.5	477.3
ROBOT-HMCS-0.75-21C	21*0.75	17.9	499.9
ROBOT-HMCS-0.75-24C	24*0.75	20.1	607.4
ROBOT-HMCS-0.75-25C	25*0.75	20.5	631.7
ROBOT-HMCS-0.75-27C	27*0.75	20.5	651.7
ROBOT-HMCS-0.75-30C	30*0.75	21.3	704.6
ROBOT-HMCS-0.75-32C	32*0.75	22.1	751.8
ROBOT-HMCS-0.75-36C	36*0.75	22.9	817.6
ROBOT-HMCS-1.0-2C	2*1.0	9.1	126.7
ROBOT-HMCS-1.0-3C	3*1.0	9.5	144.8
ROBOT-HMCS-1.0-4C	4*1.0	10.3	170.4
ROBOT-HMCS-1.0-5C	5*1.0	11.2	198.3
ROBOT-HMCS-1.0-6C	6*1.0	12.1	227.7
ROBOT-HMCS-1.0-7C	7*1.0	12.1	242.5
ROBOT-HMCS-1.0-8C	8*1.0	13.0	272.4
ROBOT-HMCS-1.0-9C	9*1.0	14.2	310.2
ROBOT-HMCS-1.0-10C	10*1.0	15.1	346.5
ROBOT-HMCS-1.0-12C	12*1.0	15.6	382.3
ROBOT-HMCS-1.0-14C	14*1.0	16.4	426.3
ROBOT-HMCS-1.0-16C	16*1.0	17.2	472.8
ROBOT-HMCS-1.0-18C	18*1.0	18.1	521.0
ROBOT-HMCS-1.0-20C	20*1.0	18.6	558.2
ROBOT-HMCS-1.0-21C	21*1.0	19.0	585.0
ROBOT-HMCS-1.0-24C	24*1.0	21.4	708.4
ROBOT-HMCS-1.0-25C	25*1.0	21.8	737.2
ROBOT-HMCS-1.0-27C	27*1.0	21.8	762.2
ROBOT-HMCS-1.0-30C	30*1.0	22.6	825.6

型號	芯線根數+導體截面積	電纜近似外徑 (mm Max.)	電纜近似重量 (kg / km)
型號	芯線根數+導體截面積	電纜近似外徑 (mm Max.)	電纜近似重量 (kg / km)
ROBOT-HMCS-1.0-32C	32*1.0	23.4	881.5
ROBOT-HMCS-1.0-36C	36*1.0	24.3	960.0
ROBOT-HMCS-1.5-2C	2*1.5	10.2	163.4
ROBOT-HMCS-1.5-3C	3*1.5	10.8	188.9
ROBOT-HMCS-1.5-4C	4*1.5	11.7	224.4
ROBOT-HMCS-1.5-5C	5*1.5	12.7	263.0
ROBOT-HMCS-1.5-6C	6*1.5	13.8	303.6
ROBOT-HMCS-1.5-7C	7*1.5	13.8	325.3
ROBOT-HMCS-1.5-8C	8*1.5	14.9	366.6
ROBOT-HMCS-1.5-9C	9*1.5	16.3	418.7
ROBOT-HMCS-1.5-10C	10*1.5	17.4	469.3
ROBOT-HMCS-1.5-12C	12*1.5	17.9	520.5
ROBOT-HMCS-1.5-14C	14*1.5	18.9	582.9
ROBOT-HMCS-1.5-16C	16*1.5	20.1	673.9
ROBOT-HMCS-1.5-18C	18*1.5	21.2	743.3
ROBOT-HMCS-1.5-20C	20*1.5	21.8	797.3
ROBOT-HMCS-1.5-21C	21*1.5	22.3	836.0
ROBOT-HMCS-1.5-24C	24*1.5	24.8	974.7
ROBOT-HMCS-1.5-25C	25*1.5	25.4	1015.3
ROBOT-HMCS-1.5-27C	27*1.5	25.4	1052.1
ROBOT-HMCS-1.5-30C	30*1.5	26.5	1176.1
ROBOT-HMCS-1.5-32C	32*1.5	27.6	1256.3
ROBOT-HMCS-1.5-36C	36*1.5	28.7	1370.0
ROBOT-HMCS-2.5-2C	2*2.5	12.2	232.4
ROBOT-HMCS-2.5-3C	3*2.5	12.9	271.6
ROBOT-HMCS-2.5-4C	4*2.5	14.1	325.9
ROBOT-HMCS-2.5-5C	5*2.5	15.4	384.8
ROBOT-HMCS-2.5-6C	6*2.5	16.8	447.0
ROBOT-HMCS-2.5-7C	7*2.5	16.8	481.8
ROBOT-HMCS-2.5-8C	8*2.5	18.1	545.1
ROBOT-HMCS-2.5-9C	9*2.5	20.2	649.8
ROBOT-HMCS-2.5-10C	10*2.5	21.6	729.8
ROBOT-HMCS-2.5-12C	12*2.5	22.3	811.4
ROBOT-HMCS-2.5-14C	14*2.5	23.5	910.4
ROBOT-HMCS-2.5-16C	16*2.5	24.8	1014.8
ROBOT-HMCS-2.5-18C	18*2.5	26.2	1122.7
ROBOT-HMCS-2.5-20C	20*2.5	27.1	1241.8
ROBOT-HMCS-2.5-21C	21*2.5	27.8	1303.1
ROBOT-HMCS-2.5-24C	24*2.5	31.0	1522.0
ROBOT-HMCS-2.5-25C	25*2.5	31.7	1586.3
ROBOT-HMCS-2.5-27C	27*2.5	31.7	1645.4
ROBOT-HMCS-2.5-30C	30*2.5	32.9	1789.2
ROBOT-HMCS-2.5-32C	32*2.5	34.2	1914.3
ROBOT-HMCS-2.5-36C	36*2.5	35.6	2093.0
ROBOT-HMCS-4.0-2C	2*4.0	13.6	300.4
ROBOT-HMCS-4.0-3C	3*4.0	14.4	356.2
ROBOT-HMCS-4.0-4C	4*4.0	15.8	431.5
ROBOT-HMCS-4.0-5C	5*4.0	17.3	512.7
ROBOT-HMCS-4.0-7C	7*4.0	18.9	649.3
ROBOT-HMCS-6.0-2C	2*6.0	15.3	390.3
ROBOT-HMCS-6.0-3C	3*6.0	16.3	468.6
ROBOT-HMCS-6.0-4C	4*6.0	17.9	572.0
ROBOT-HMCS-6.0-5C	5*6.0	19.6	683.4
ROBOT-HMCS-6.0-7C	7*6.0	21.7	900.7
ROBOT-HMCS-10.0-3C	3*10	20.6	761.0
ROBOT-HMCS-10.0-4C	4*10	22.7	931.7
ROBOT-HMCS-10.0-5C	5*10	25.1	1115.8
ROBOT-HMCS-10.0-7C	7*10	27.7	1466.1
ROBOT-HMCS-16-3C	3*16	23.0	1025.3
ROBOT-HMCS-16-4C	4*16	25.4	1267.9
ROBOT-HMCS-16-5C	5*16	28.2	1562.9
ROBOT-HMCS-16-7C	7*16	31.0	2020.9
