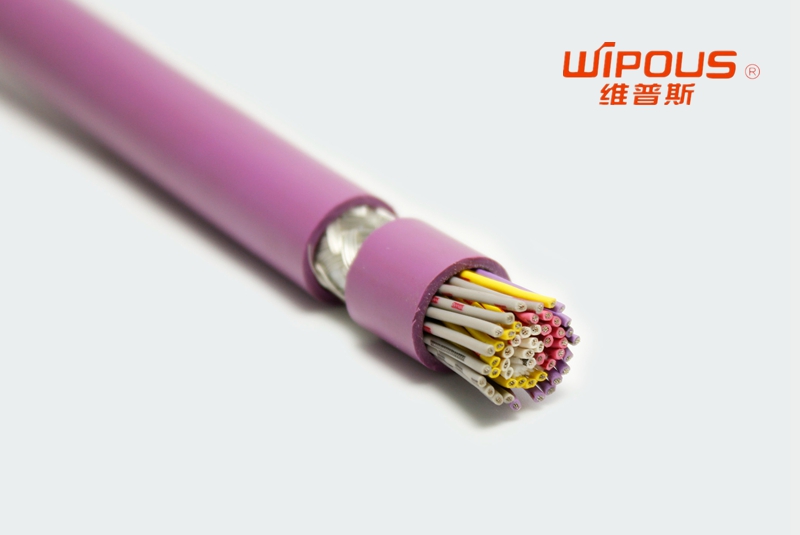

鍍錫銅絲編織屏蔽
進口柔性PUR護套
柔性PVC絕緣
超細銅絲導體
產品應用：
喬浦HPMCU-S屏蔽數據信號電纜適用于計算機系統，電子控制設備，工業電子系統，數據傳輸系統等場合的數據及信號傳輸。特別適合用于工業環境中，干燥或者潮濕的室內在室外露天固定安裝，PUR外護套使此款電纜適用于極其苛刻的工業環境和有腐蝕性冷卻劑和潤滑油場合，具有極好的耐油性，抗磨損性，抗微生物，抗水解，抗化學腐蝕，抗紫外線保護電纜不受機械應力的損害。鍍錫銅編織屏蔽使線纜具有較強的抗外界電磁干擾能力，保證數據及信號穩定傳輸。
| 型號 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| HPMCU-S-0.14-2C | 2*0.14 | 4.5 | 40.1 |
| HPMCU-S-0.14-3C | 3*0.14 | 4.6 | 47.1 |
| HPMCU-S-0.14-4C | 4*0.14 | 4.9 | 55.9 |
| HPMCU-S-0.14-5C | 5*0.14 | 5.2 | 65.3 |
| HPMCU-S-0.14-6C | 6*0.14 | 5.6 | 75.2 |
| HPMCU-S-0.14-7C | 7*0.14 | 5.6 | 79.7 |
| HPMCU-S-0.14-8C | 8*0.14 | 6.5 | 89.8 |
| HPMCU-S-0.14-9C | 9*0.14 | 6.3 | 102.1 |
| HPMCU-S-0.14-10C | 10*0.14 | 6.7 | 112.6 |
| HPMCU-S-0.14-12C | 12*0.14 | 6.9 | 124.8 |
| HPMCU-S-0.14-14C | 14*0.14 | 7.1 | 139.2 |
| HPMCU-S-0.14-16C | 16*0.14 | 7.6 | 154.4 |
| HPMCU-S-0.14-18C | 18*0.14 | 7.9 | 170.2 |
| HPMCU-S-0.14-20C | 20*0.14 | 8.1 | 182.7 |
| HPMCU-S-0.14-21C | 21*0.14 | 8.3 | 190.6 |
| HPMCU-S-0.14-24C | 24*0.14 | 9.2 | 221.1 |
| HPMCU-S-0.14-25C | 25*0.14 | 9.4 | 229.5 |
| HPMCU-S-0.14-27C | 27*0.14 | 9.4 | 238.4 |
| HPMCU-S-0.14-30C | 30*0.14 | 9.7 | 258.6 |
| HPMCU-S-0.14-32C | 32*0.14 | 10.1 | 275.1 |
| HPMCU-S-0.14-36C | 36*0.14 | 10.5 | 301.1 |
| HPMCU-S-0.25-2C | 2*0.25 | 4.5 | 46.1 |
| HPMCU-S-0.25-3C | 3*0.25 | 4.7 | 54.8 |
| HPMCU-S-0.25-4C | 4*0.25 | 5.1 | 65.6 |
| HPMCU-S-0.25-5C | 5*0.25 | 5.5 | 77.2 |
| HPMCU-S-0.25-6C | 6*0.25 | 6.0 | 89.2 |
| HPMCU-S-0.25-7C | 7*0.25 | 6.0 | 95.1 |
| HPMCU-S-0.25-8C | 8*0.25 | 6.4 | 107.4 |
| HPMCU-S-0.25-9C | 9*0.25 | 7.0 | 122.2 |
| HPMCU-S-0.25-10C | 10*0.25 | 7.4 | 135.1 |
| HPMCU-S-0.25-12C | 12*0.25 | 7.6 | 150.6 |
| HPMCU-S-0.25-14C | 14*0.25 | 8.0 | 168.8 |
| HPMCU-S-0.25-16C | 16*0.25 | 8.4 | 187.8 |
| HPMCU-S-0.25-18C | 18*0.25 | 8.9 | 207.4 |
| HPMCU-S-0.25-20C | 20*0.25 | 9.1 | 223.3 |
| HPMCU-S-0.25-21C | 21*0.25 | 9.3 | 233.2 |
| HPMCU-S-0.25-24C | 24*0.25 | 10.3 | 270.7 |
| HPMCU-S-0.25-25C | 25*0.25 | 10.5 | 281.1 |
| HPMCU-S-0.25-27C | 27*0.25 | 10.5 | 292.9 |
| HPMCU-S-0.25-30C | 30*0.25 | 10.9 | 318.4 |
| HPMCU-S-0.25-32C | 32*0.25 | 11.3 | 339.0 |
| HPMCU-S-0.25-36C | 36*0.25 | 11.7 | 372.1 |
| HPMCU-S-0.34-2C | 2*0.34 | 4.8 | 50.5 |
| HPMCU-S-0.34-3C | 3*0.34 | 5.0 | 60.6 |
| HPMCU-S-0.34-4C | 4*0.34 | 5.4 | 72.9 |
| HPMCU-S-0.34-5C | 5*0.34 | 5.9 | 86.0 |
| HPMCU-S-0.34-6C | 6*0.34 | 6.3 | 99.7 |
| HPMCU-S-0.34-7C | 7*0.34 | 6.3 | 106.8 |
| HPMCU-S-0.34-8C | 8*0.34 | 6.7 | 120.7 |
| HPMCU-S-0.34-9C | 9*0.34 | 7.4 | 137.4 |
| HPMCU-S-0.34-10C | 10*0.34 | 7.9 | 152.0 |
| HPMCU-S-0.34-12C | 12*0.34 | 8.1 | 170.1 |
| HPMCU-S-0.34-14C | 14*0.34 | 8.6 | 191.1 |
| HPMCU-S-0.34-16C | 16*0.34 | 9.0 | 213.1 |
| HPMCU-S-0.34-18C | 18*0.34 | 9.5 | 235.7 |
| HPMCU-S-0.34-20C | 20*0.34 | 9.7 | 254.2 |
| Type No. | No. of Cores + mm2 per conductor |
Outer diameter (mm Max.) |
Ref weight (kg / km) |
| HPMCU-S-0.34-21C | 21*0.34 | 9.9 | 265.6 |
| HPMCU-S-0.34-24C | 24*0.34 | 11.0 | 308.3 |
| HPMCU-S-0.34-25C | 25*0.34 | 11.3 | 320.3 |
| HPMCU-S-0.34-27C | 27*0.34 | 11.3 | 334.4 |
| HPMCU-S-0.34-30C | 30*0.34 | 11.7 | 364.1 |
| HPMCU-S-0.34-32C | 32*0.34 | 12.1 | 387.8 |
| HPMCU-S-0.34-36C | 36*0.34 | 12.6 | 426.4 |
| HPMCU-S-0.5-2C | 2*0.5 | 5.6 | 58.0 |
| HPMCU-S-0.5-3C | 3*0.5 | 5.9 | 70.5 |
| HPMCU-S-0.5-4C | 4*0.5 | 6.4 | 85.6 |
| HPMCU-S-0.5-5C | 5*0.5 | 7.0 | 101.5 |
| HPMCU-S-0.5-6C | 6*0.5 | 7.6 | 118.0 |
| HPMCU-S-0.5-7C | 7*0.5 | 7.6 | 127.1 |
| HPMCU-S-0.5-8C | 8*0.5 | 8.1 | 144.0 |
| HPMCU-S-0.5-9C | 9*0.5 | 9.0 | 164.0 |
| HPMCU-S-0.5-10C | 10*0.5 | 9.6 | 181.7 |
| HPMCU-S-0.5-12C | 12*0.5 | 9.9 | 204.4 |
| HPMCU-S-0.5-14C | 14*0.5 | 10.4 | 230.5 |
| HPMCU-S-0.5-16C | 16*0.5 | 11.0 | 257.6 |
| HPMCU-S-0.5-18C | 18*0.5 | 11.6 | 285.5 |
| HPMCU-S-0.5-20C | 20*0.5 | 11.9 | 308.8 |
| HPMCU-S-0.5-21C | 21*0.5 | 12.2 | 322.8 |
| HPMCU-S-0.5-24C | 24*0.5 | 13.6 | 374.7 |
| HPMCU-S-0.5-25C | 25*0.5 | 13.9 | 389.5 |
| HPMCU-S-0.5-27C | 27*0.5 | 13.9 | 407.7 |
| HPMCU-S-0.5-30C | 30*0.5 | 14.4 | 444.7 |
| HPMCU-S-0.5-32C | 32*0.5 | 15.0 | 474.0 |
| HPMCU-S-0.5-36C | 36*0.5 | 15.6 | 522.2 |
| HPMCU-S-0.75-2C | 2*0.75 | 6.1 | 68.3 |
| HPMCU-S-0.75-3C | 3*0.75 | 6.4 | 84.2 |
| HPMCU-S-0.75-4C | 4*0.75 | 7.0 | 103.0 |
| HPMCU-S-0.75-5C | 5*0.75 | 7.7 | 122.8 |
| HPMCU-S-0.75-6C | 6*0.75 | 8.3 | 143.4 |
| HPMCU-S-0.75-7C | 7*0.75 | 8.3 | 155.5 |
| HPMCU-S-0.75-8C | 8*0.75 | 9.0 | 176.5 |
| HPMCU-S-0.75-9C | 9*0.75 | 9.9 | 201.1 |
| HPMCU-S-0.75-10C | 10*0.75 | 10.6 | 223.0 |
| HPMCU-S-0.75-12C | 12*0.75 | 10.9 | 252.4 |
| HPMCU-S-0.75-14C | 14*0.75 | 11.5 | 285.6 |
| HPMCU-S-0.75-16C | 16*0.75 | 12.1 | 320.0 |
| HPMCU-S-0.75-18C | 18*0.75 | 12.8 | 355.3 |
| HPMCU-S-0.75-20C | 20*0.75 | 13.2 | 385.4 |
| HPMCU-S-0.75-21C | 21*0.75 | 13.5 | 403.1 |
| HPMCU-S-0.75-24C | 24*0.75 | 15.1 | 467.9 |
| HPMCU-S-0.75-25C | 25*0.75 | 15.4 | 486.6 |
| HPMCU-S-0.75-27C | 27*0.75 | 15.4 | 510.7 |
| HPMCU-S-0.75-30C | 30*0.75 | 16.0 | 558.3 |
| HPMCU-S-0.75-32C | 32*0.75 | 16.6 | 595.5 |
| HPMCU-S-0.75-36C | 36*0.75 | 17.3 | 657.4 |
| HPMCU-S-1.0-2C | 2*1.0 | 6.5 | 77.8 |
| HPMCU-S-1.0-3C | 3*1.0 | 6.9 | 97.0 |
| HPMCU-S-1.0-4C | 4*1.0 | 7.5 | 119.4 |
| HPMCU-S-1.0-5C | 5*1.0 | 8.2 | 142.9 |
| HPMCU-S-1.5-2C | 2*1.5 | 8.1 | 101.6 |
| HPMCU-S-1.5-3C | 3*1.5 | 8.6 | 128.6 |
| HPMCU-S-1.5-4C | 4*1.5 | 9.4 | 159.6 |
